1X2 Optical Switch Module

Product Description:

XH-DSW-1X2 shell optical switch module is a light path control device, which has the function of controlling the light path and converting the light path; it can realize 2 paths of optical signal input, select one of the signal outputs (supporting bidirectional use), and the module supports buttons Manual switching and RS-232 serial port command control. It plays an important role in optical communication applications. Optical switches are mainly used in multi-channel optical monitoring in optical transmission systems, LAN multi-light source/detector automatic switching, and optical sensing multi-point dynamic monitoring system optical test systems for optical fibers, optical devices, networks and field engineering optical cables Test; optical device installation and adjustment.

Features:

●Low insertion loss, wide wavelength range

  ●Low channel crosstalk, high stability, high reliability

  ●Support manual key switch and RS-232 command control

  ●Locking and non-locking control types can be selected

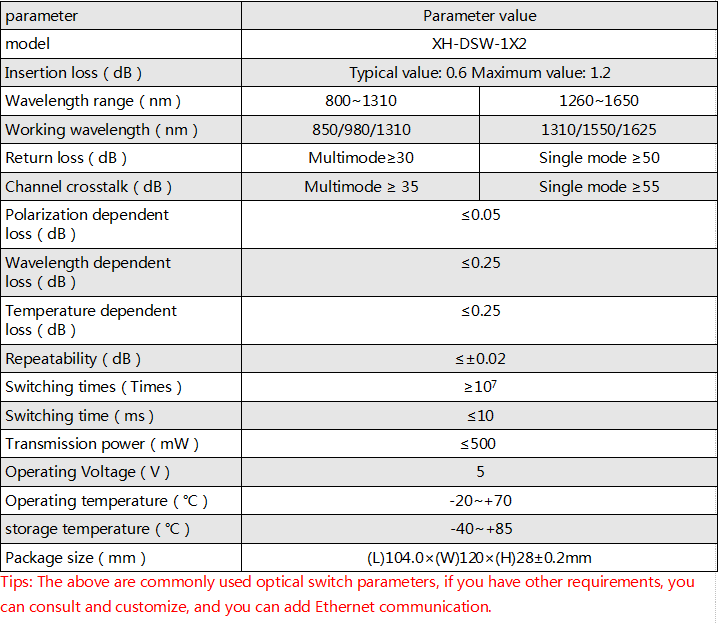

Parameter:

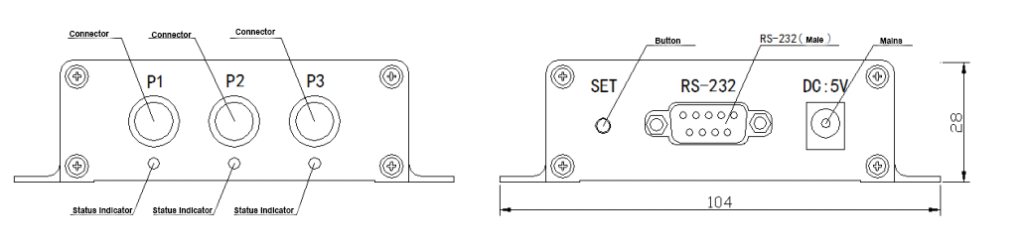

Panel diagram:

Note: P1, P2, P3 are flange connectors. The P1 status indicator is the power indicator; the P2 status indicator is the light path status indicator, and the light is on to indicate that P1 is connected to P2; the P3 status indicator is the light path status indicator, and the light is on to indicate that P1 is on to P3. The SET button is a manual control switch button; RS-232 is a DB9 male serial communication interface, the factory baud rate is 9600, the data bit is 8 bits, the stop bit is 1 bit, and there is no parity; 5V is the power adapter interface.

RS-232 interface pins:

Optical Route :

Ordering Information：XH-DSW-1X2-A-B-C-D
