4×8 Mechanical Optical Switch
Introduction

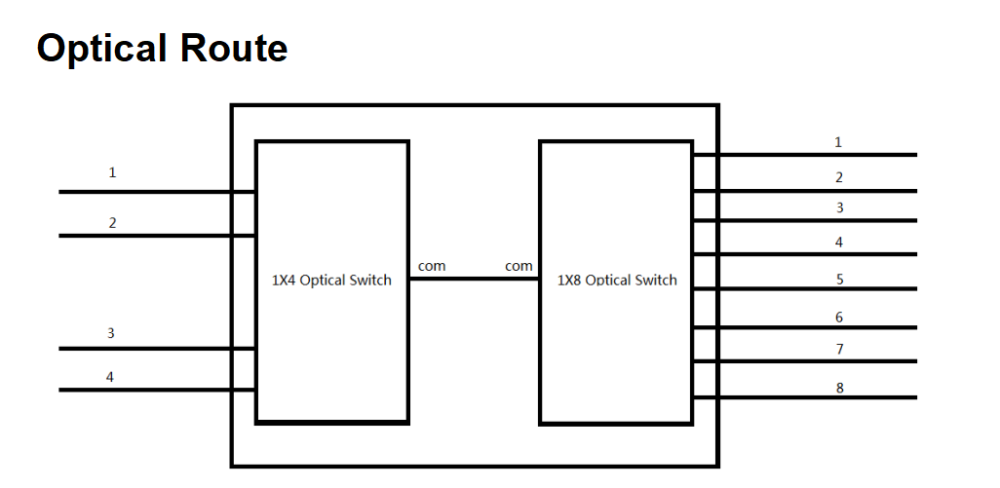

XH-OSW-4×8 mechanical optical switch is a kind of light path control equipment. It can realize multi-channel fiber optic light path switching. In the optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and related component test, outdoor cable test and multi-spot optical sensors monitoring system.
Feratures
- Low Loss and High Reliability
- Serial Interface (RS-232)
- Modularized Design
- Epoxy-free on Optical Path
Applications
- Ring Network
•Remote Monitoring in Optical Network
•Testing of FiberOptical Component
Specifications
| Parameter | Parameter Values |
| Model | XH-OSW-4X8-N |
| Insertion Loss | ≤1.5 dB |
| Wavelength Range | 1260~1650 nm |
| Fiber Type | 9/125um |
| Return Loss | ≥50 dB |
| Crosstalk | ≥ 55 dB |
| PDL | ≤0.10 dB |
| WDL | ≤0.30 dB |
| TDL | ≤0.30 dB |
| Repeatability | ≤0.05 dB |
| Lifetime | >107 |
| Switching Time | ≤20 ms （Adjacent channel） |
| Connector | LC/UPC |
| Control Mode | RS-232 |
| Working Power Supply | 5V/800 mA |
| Product Sze | 135x64x32 |
| Operating Temperature | -20 ℃ to +70 ℃ |
| Operating Temperature | -40 ℃ to +85 ℃ |
