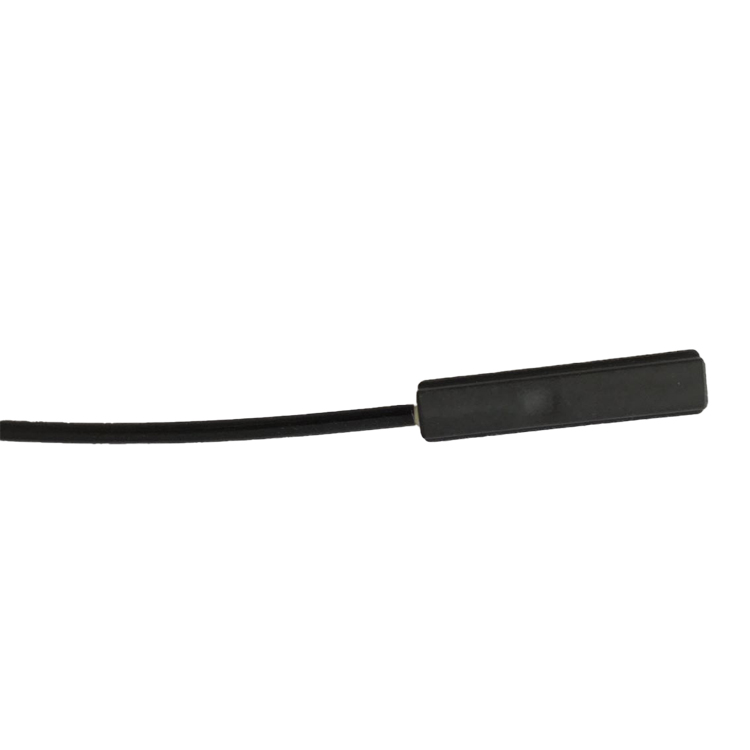

Fiber Bragg grating temperature sensor

Product Name: Fiber Bragg grating temperature sensor

Product model: XH–T01

Application scope:

High voltage switch, high voltage busbar temperature measurement

Cable joint temperature measurement

Temperature measurement at the interface of copper and aluminum

Dry type transformer temperature measurement

Technical parameters:

Center wavelength of grating 1528nm ~ 1568nm

Grating reflectivity >85%

Standard range -30 C ~ +150 C

Thermometer resolution 0.1 degrees centigrade

measurement accuracy 0.5 degrees centigrade

Packaging form ceramics

Installation method Surface bonding / binding

Fiber optic joint FC / APC

Shape size (long x wide x high) 28.5 x 4 x 3 mm
