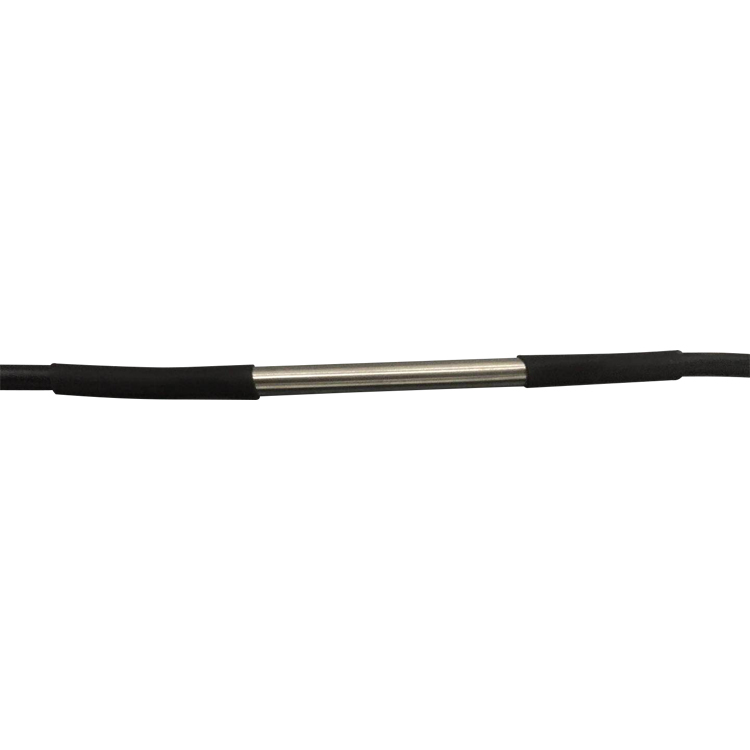

Product Name: Fiber Bragg Grating Temperature Sensor

Product number：XH–T01

Application range:

High voltage switch, high voltage bus temperature measurement

Cable joint temperature measurement

Copper and aluminum discharge interface temperature measurement

Dry-type transformer temperature measurement

Technical Parameters:

Grating center wavelength	1528nm～1568nm
Grating reflectivity	>85%
Standard range	-30℃～+150℃
Temperature measurement resolution	0.1℃
measurement accuracy	±0.5℃
Package form	ceramics
Installation method	Surface sticking/binding
Fiber optic connector	FC∕APC
Overall dimensions (L×W×H)	28.5×4×3 mm
