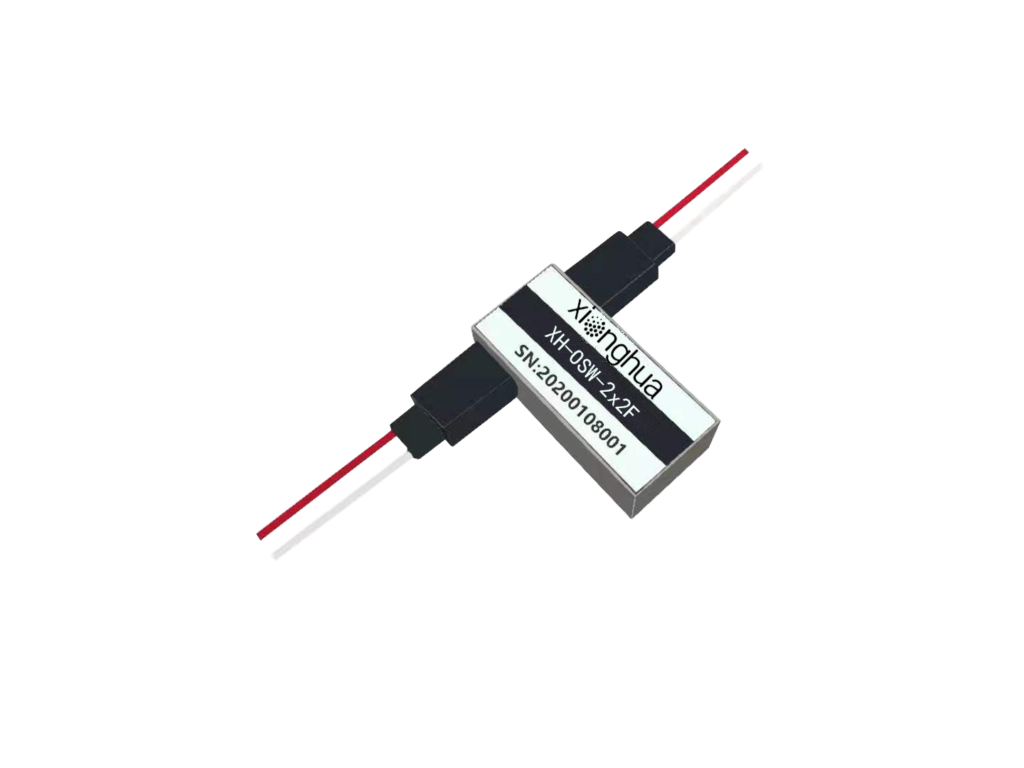

Mechanical optical switch 2X2f

2x2F Optical Switch

●Low insertion loss, wide wavelength range

  ●Low channel crosstalk, high stability, high reliability

  ●Simple control, small size, easy to embed in the circuit board

  ●Locking and non-locking control types can be selected

Description

2x2F Optical Switch is a kind of optical path control device, which has the function of controlling the optical path and converting the optical path; it can realize the two-way direct and cross function of the optical path. It plays an important role in optical communication applications. Optical switches are mainly used in multi-channel optical monitoring in optical transmission systems, LAN multi-light source/detector automatic switching, and optical sensing multi-point dynamic monitoring system optical test systems for optical fibers, optical devices, networks and field engineering optical cables Test; optical device installation and adjustment.

Features

●Low insertion loss, wide wavelength range

  ●Low channel crosstalk, high stability, high reliability

  ●Simple control, small size, easy to embed in the circuit board

  ●Locking and non-locking control types can be selected

Performance

Parameter Parameter Value
Model XH-OSW-2X2F
Insertion loss(dB) Typ:0.5 Max:1.0
Wavelength Range(nm) 800~1310 & 1260~1650
Working Wavelength(nm) 850/980/1310 & 1310/1550/1625
Return Loss(dB) MM≥30 & SM ≥50
Channel Crosstalk(dB) MM≥ 35 & SM ≥55
PDL(dB) ≤0.05
WDL(dB) ≤0.25
TDL(dB) ≤0.25
Repeatability(dB) ≤±0.02
Lifetime(Times) ≥107
Switching Time(ms) ≤8
Transmission Power(mW) ≤500
Operating Voltage(V) 3 or 5
Operating Temperature(℃) -20~+70
Storage Temperature(℃)  -40~+85
Dimension(mm) (L)27.0×(W)12.5×(H)8.4±0.2

Tip: The above are commonly used optical switch parameters, if you have other requirements, please consult and customize.
