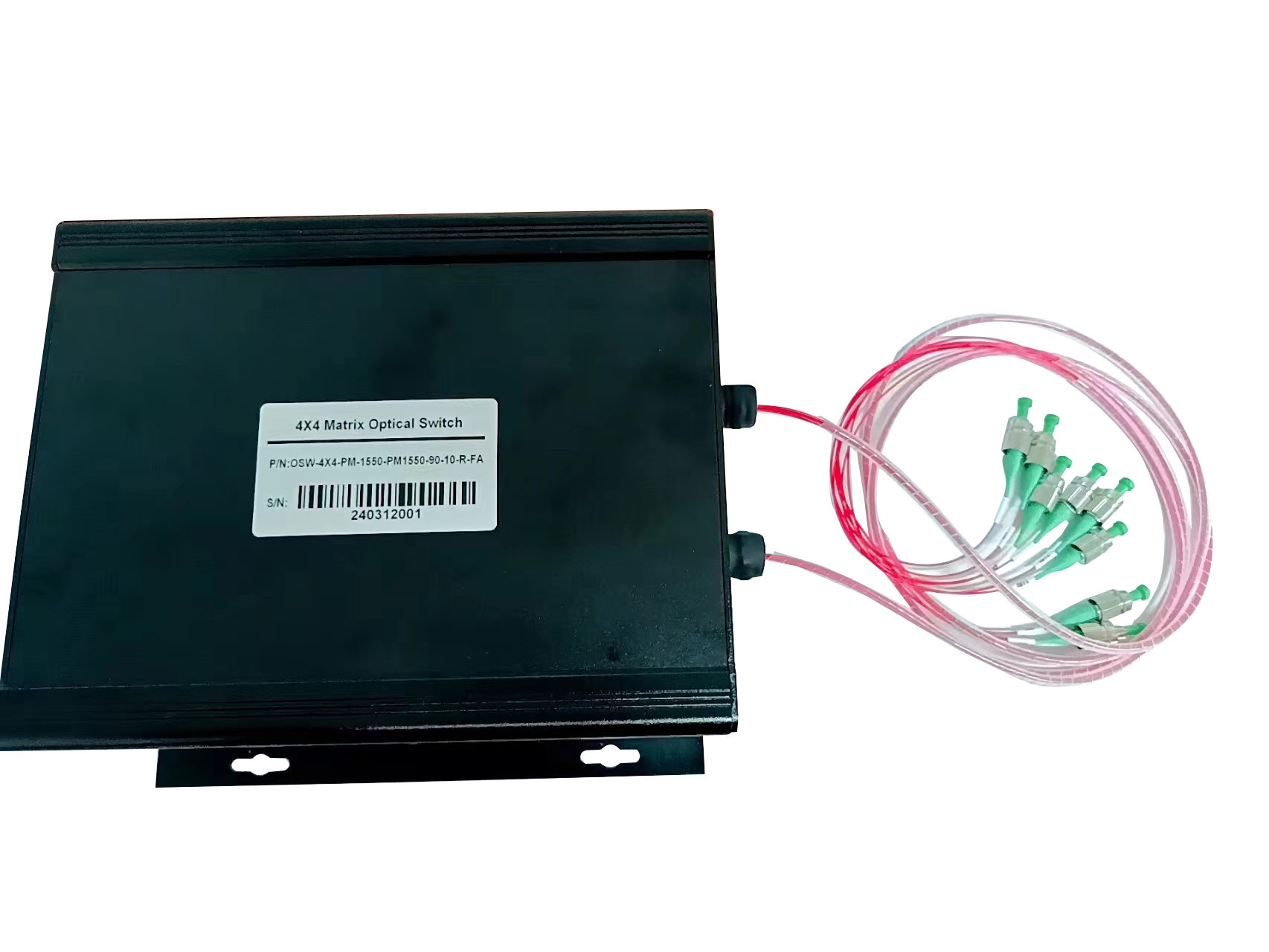

MXN PM Matrix Optical Switch Module
4×4 PM Matrix Optical Switch is a kind of light path control equipment. It can realize multi-channel fiber optic light path switching. In the optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and related component test, outdoor cable test and multi-spot optical sensors monitoring system.
Feratures
- Low Loss and High Reliability
- Serial Interface (RS-232)
- Modularized Design
- Epoxy-free on Optical Path
Applications
- Ring Network
- Remote Monitoring in Optical Network
- Testing of FiberOptical Component
Specifications
| Parameter | Parameter Values |
| Model | XH-OSW-4X4-PM |
| Insertion Loss | ≤1.5 dB |
| Wavelength Range | 1440~1625 nm |
| Test Wavelength | 1550 nm |
| Extinction Ratio | ≥18 dB |
| Fiber Type | PM1550 |
| Return Loss | ≥50 dB |
| Crosstalk | ≥ 70 dB |
| WDL | ≤0.50 dB |
| TDL | ≤0.50 dB |
| Repeatability | ≤0.04 dB |
| Lifetime | > 108 |
| Switching Time | ≤20 ms （Adjacent channel） |
| Optic Power | ≤500 mW |
| Connector | FC/APC |
| Control Mode | RS232 |
| Working Power Supply | 5V/4800 mA |
| Product Sze | 200 x 160 x 100 mm |
| Operating Temperature | -20 ℃ to +70 ℃ |
| Storage temperature | -40 ℃ to +85 ℃ |

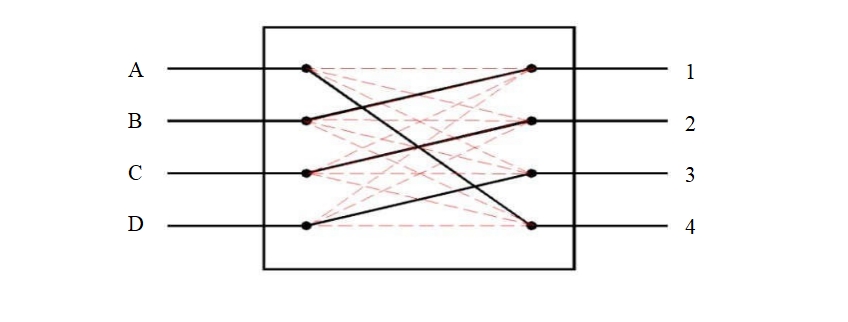

Optical Route
