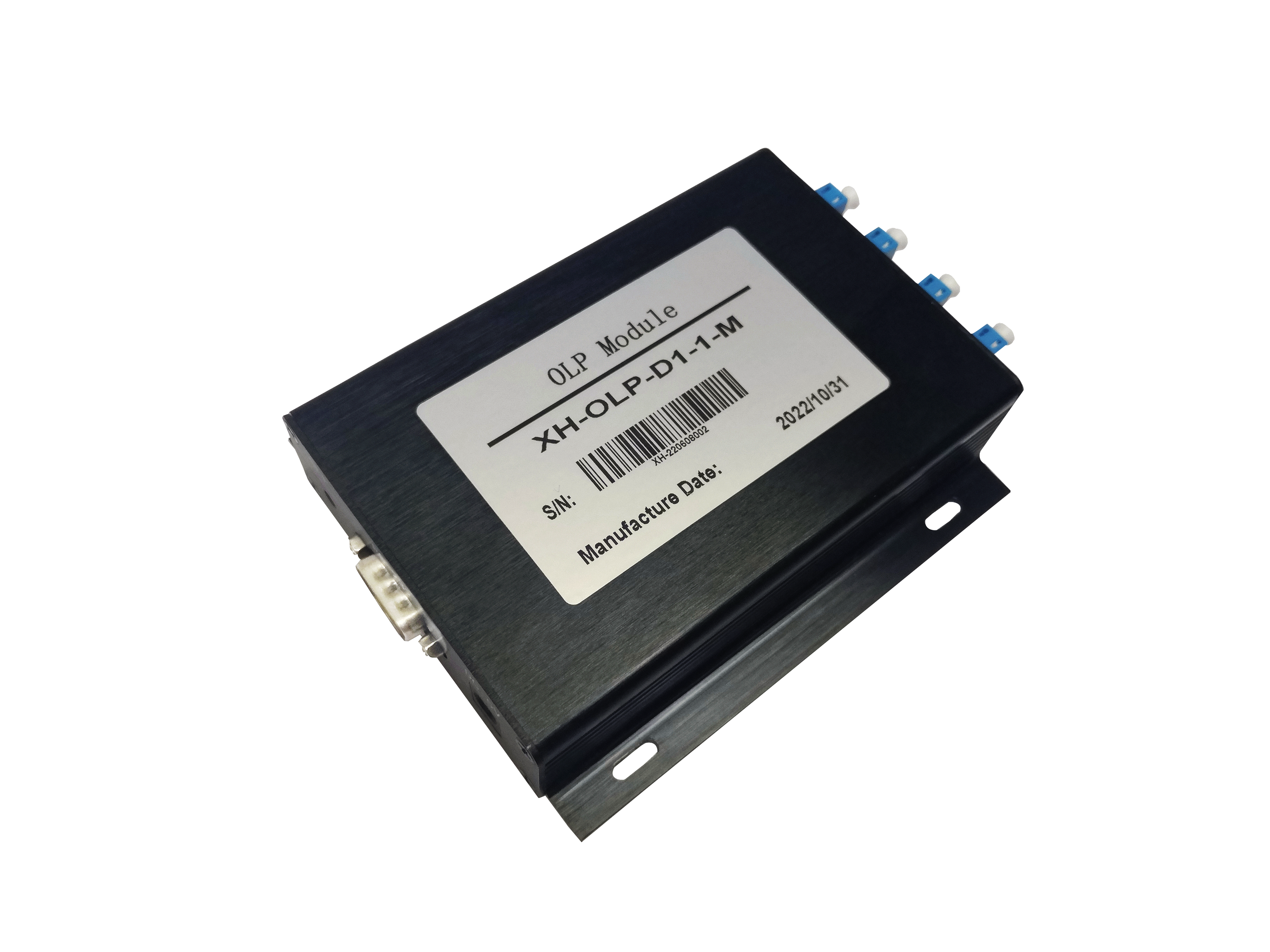

OLP-Optical Line Protection
Product Description

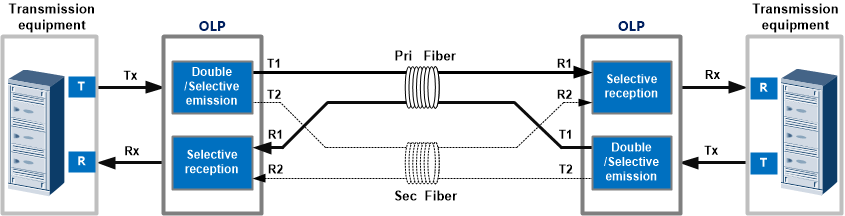

XH-OLP-Optical Line Protection is a product that is used in the protection of network transmission line, the product can realize optical power monitoring and automatic switching. In optical communication network, OLP real-time monitoring optical power of working optical fiber and standby optical fiber. When the optical power value of working optical fiber is below the set switching threshold, the system raise the alarm prompt and switches to standby fiber automatically, which achieve line protection of optical transmission system.
Product Applications
- SDHNetwork
- IPNetwork
- C/DWDMNetwork
- Other Network
Product Features
- Low insertion loss
- Business non-invasive switch
- Transparent transmission characteristics
- Reduce the loss caused by line fault
- Increase the reliability of the transmission network, improve network quality
- High level of integrationby plug-in design, which saves space of cabinet
- Expansion is very convenient
Performance Index
| Parameters | Unit | Specifications | |
| 1+1 | 1:1 | ||
| Operating Wavelength
|
nm | ITU CWDM or DWDM
1550 |
|
| Monitoring optical power range | dBm | ＋23～-50
|
|
| Monitoring optical power accuracy | dB | ±0.25 | |
| Optical power resolution | dB | ±0.01
-1~+3 0~+4 |
|
| Return loss | dB | ≥55 | |
| PDL | dB | ≤0.05
≤1.5 ≤2.5 |
|
| WDL | dB | ≤0.1
≤3.8 |
|
| IL | dB | TX＜3.8，RX＜1.2 | TX＜1.5，RX＜1.2 |
| Switching speed | ms | <15 | <35 |
| Operation life | time | >10000000 | |
| Consumption | W | ＜3 | |
