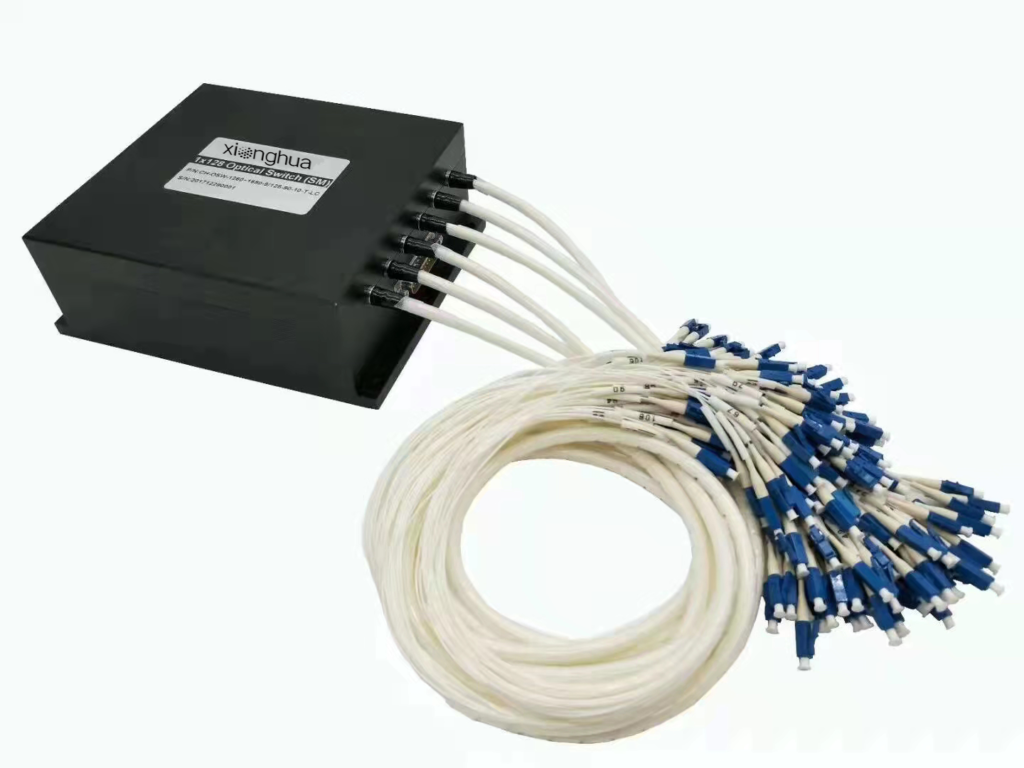

Optical Switch Mechanical XH-OSW-1×128
Introduction
XH-OSW-1×128 mechanical optical switch is a kind of light path control equipment.
It can realize multi-channel fiber optic light path switching. In the optical
fiber transmission system, it is used for multi-channel fiber monitoring,
multi light source/detector selection, and optical fiber path protection etc.
Besides, it is also used in optical fiber test system for optical fiber and
related component test, outdoor cable test and multi-spot optical sensors
monitoring system.
Feratures Applications Parameter Parameter Values Model XH-OSW-1X128 Insertion Loss 1<N≤128 1.5 dB Wavelength Range 1260~1650nm Wavelength Testing 1310/1550nm nm （Customizable） Return Loss SM ≥ 55 dB Crosstalk SM ≥ 70 dB PDL ≤0.05dB WDL ≤0.25 dB TDL ≤0.25 dB Repeatability ≤0.02 dB Lifetime ≥107 Switching Time ≤10 ms Transmission Power ≤500 mW Connector FC、LC、SC、ST Control TTL Operating Voltage 5V Working Current 2000mA Operating Temperature -20 ℃ ~ +70 ℃ Storage Temperature -40 ℃ ~ +85 ℃ Ordering Information ： XH-OSW-1XN-A-B-C-D-E Channel(N) Wavelength(A) Fiber Type(B) Fiber Diameter(C) Fiber Length (D) Connector(E) N:≤128 850:850nm 1310:1310nm 1550:1550nm 1310/1550:1310nm/1550nm X:Others SM:SM,9/125 M5:MM,50/125 M6:MM,62.5/125 HI1060:HI1060 X:Others 25::250um 90:900um 200:200um X:Others 05:0.5m 10:1.0m 15:1.5m X:Others OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC X:Others
●Low Loss and High Reliability
●Parallel Interface (TTL)
●Modularized Design
●Epoxy-free on Optical Path
●Drive Circuit Breakdown Self-checking Function
•Ring Network
•Remote Monitoring in Optical Network
•Testing of Fiber Optical ComponentPerformance
