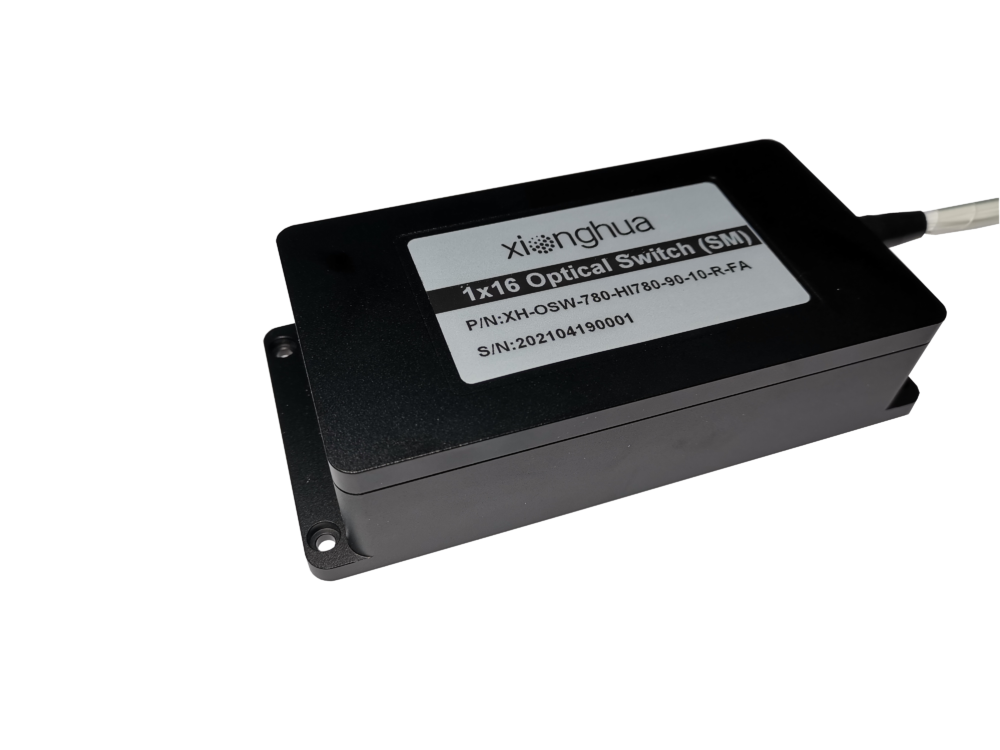

Mechanical Optical Switch 1X32 ( XH-OSW-1X32)
Description:
XH-OSW-1X32 Mechanical optical switch is an optical path control device, which has the function of controlling the optical path and converting the optical path. It plays an important role in optical communication applications. Optical switches are mainly used in multi-channel optical monitoring in optical transmission systems, automatic switching of LAN multi-light sources/detectors, and optical sensing multi-point dynamic monitoring systems in optical testing systems for optical fibers, optical devices, networks and field engineering. Optical cable testing ; Optical device adjustment.
Features:
●Low insertion loss, wide wavelength range
● Low channel crosstalk, high stability, high reliability
●Unique technology, no glue in the optical path
●Selectable locking and non-locking control types
Parameter:
|
Parameter |
parameter values |
|
model |
XH-OSW-1X32 |
|
Insertion Loss |
16<N≤64 |
|
Typ：0.6dB Max：0.8 dB |
|
|
Wavelength Range |
1260~1650 nm |
|
Wavelength testing |
1310/1490/1550/1625 nm |
|
Return Loss |
SM ≥ 50 |
|
Crosstalk |
SM ≥ 70 |
|
PDL |
≤0.05dB |
|
WDL |
≤0.25 dB |
|
TDL |
≤0.25 dB |
|
Repeatability |
≤0.02 dB |
|
Lifetime |
≥107 次 |
|
Switching Time |
≤8 ms （adjacent channel) |
|
Transmission power |
≤500 mW |
|
Connector |
FC、LC、SC、ST |
|
Control |
TTL |
|
Operating Voltage |
5V |
|
Working current |
600mA |
|
Operating Temperature |
-20 ℃ ~ +70 ℃ |
|
Storage Temperature |
-40 ℃ ~ +85 ℃ |
Optical Rout：

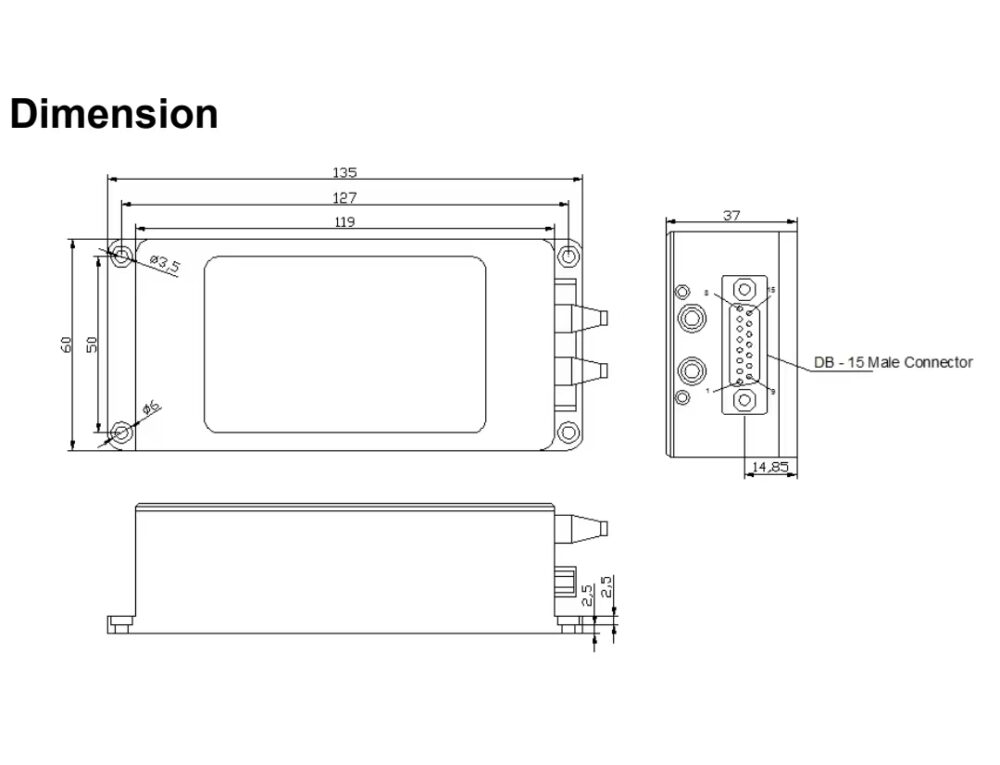

Ordering Information ： XH–OSW-1XN-A-B-C-D-E
|
Number channels(N) |
Test wavelength(A) |
Fiber Type(B) |
Protective sleeve(C)
|
Fiber length(D) |
Connector(E) |
|
N:≤64 |
850:850nm 1310:1310nm 1550:1550nm 1310/1550:1310nm/1550nm X:other |
SM:SM,9/125 M5:MM,50/125 M6:MM,62.5/125 HI1060:HI1060 X:other |
25::250um 90:900um 200:200um X:other |
05:0.5m 10:1.0m 15:1.5m X:other |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC MPO X:other |
