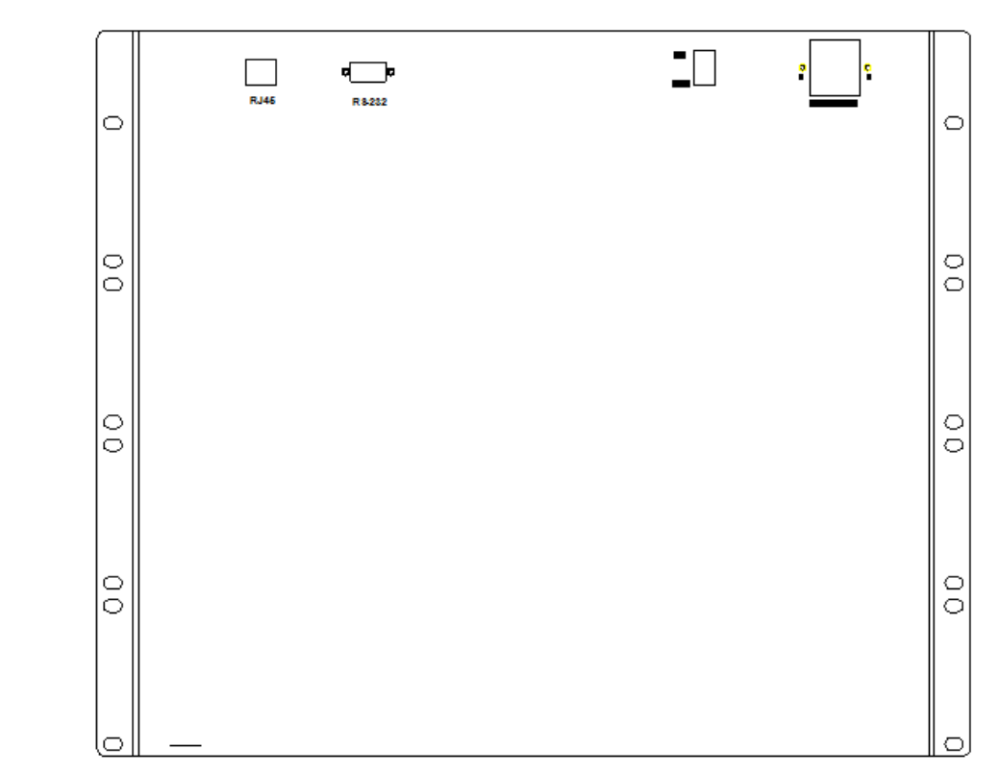

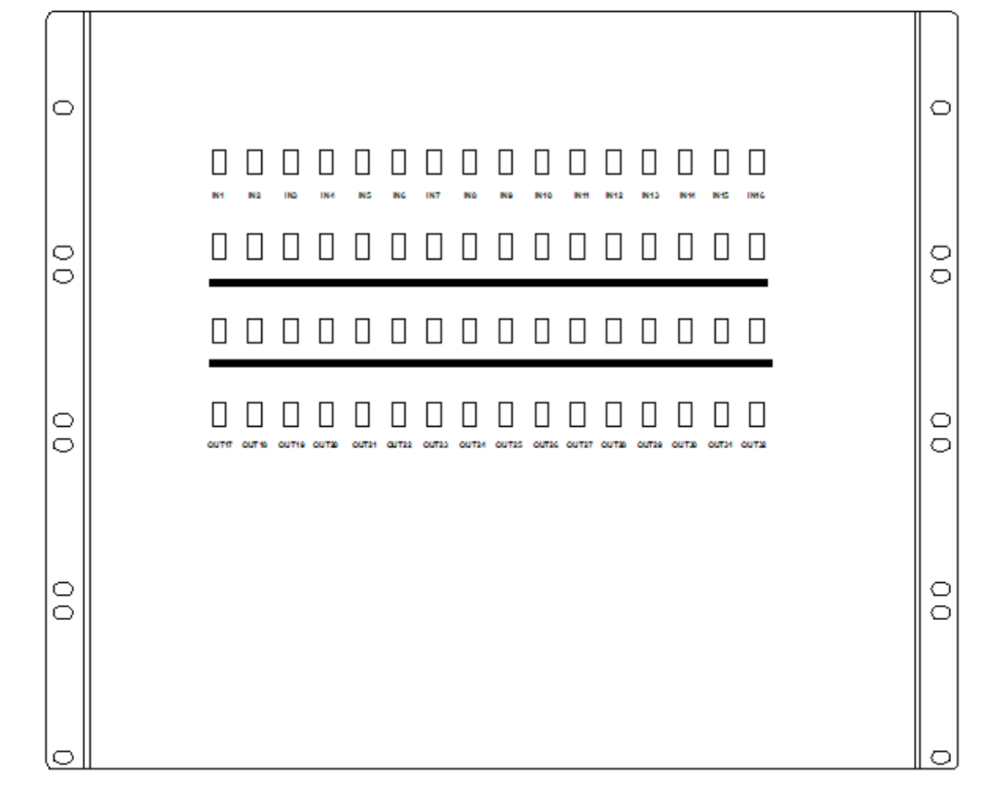

MXN Matrix optical switch

Describe

XH-FSW-MXN matrix rack optical switch is a product that uses optical switches to realize optical path conversion. The device provides serial port RS-232 and Ethernet RJ45 interface, through the TCP/IP protocol connection to send commands to control optical path switching, and finally realize 24 (input) × 24 (output) full-switching non-blocking two-way fiber-optic routing Cross-connect plays an important role in optical communication applications. Optical switches are mainly used in multi-channel optical monitoring in optical transmission systems, automatic switching of LAN multi-light sources/detectors, and optical sensing multi-point dynamic monitoring systems; optical testing systems are used for optical fibers, optical devices, networks and field engineering optical cables Testing; Optical device assembly and adjustment

Features

(1) Ethernet port, serial port communication interface command control.

(2) full switching non-blocking two-way cross connection.

(3) Equipped with LC Seiko flange, the insertion loss is small.

(4) Small insertion loss, fast switching speed, high signal stability, no crosstalk on adjacent channels

Applications:

(1)FITL

(2) Automatic Measurement

(3) Optical Network Remote Monitoring

Specifications

Parameter	Parameter Values
Model	XH-FSW-MXN-Q
Wavelength Range	1260~1650nm
Insertion Loss	≤ 1.2 dB
Repeatability	≤ 0.02 dB
Return Loss	≥ 50 dB
Crosstalk	≥ 70 dB
WDL	≤ 0.25 dB
PDL	≤ 0.05 dB
Fiber Type	SM（9/125um）
Lifetime	10⁷
Switching Time	≤15ms(Adjacent channel)
connector	FCPC
control	RJ45、RS-232
Operating power	AC：100~240V
Operating Temperature	-10 ~ +60℃
Storage Temperature	-40 ℃ ~ +85 ℃
Dimension	19”4U：483 X 600 X 178
